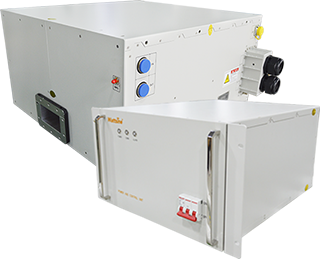

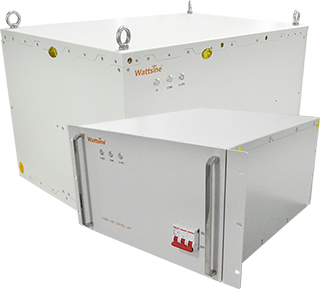

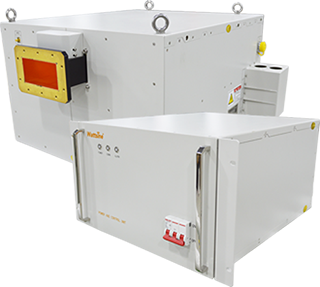

Solid-State Medium-Power Generator

WSPS-2450-5K-CEWG
2450MHz | 6kW
WSPS-2450-5K-CEWG solid state medium-power generator is a solid-state microwave energy device specifically used for application in the ISM field. combined with the latest generation of GaN/LDMOS devices, offers a fully solid-state solution with excellent performance and reliability. Provide up to 6000W of continuous wave or pulsed power. Compared to modular and solid state low-power generator, it has a more reliable internal thermal design, more internal information and status reading functions due to the greater microwave power output, and can be applied to industrial power supply with matching water cooling (silent and efficient).
    • 6000W power
      10-6000Wcontinuously adjustable, output power stability less than 1%
    • All-solid state
      All solid-state programme design
    • Real time display
      WSPS-2450-5000 microwave generator designed with real-time display of external reflected power status
    • Complete protection
      Complete protection functions for amplifier module current, internal voltage, internal amplifier temperature and excessive standing waves with fast response
    • Frequency stability
      WSPS-2450-5K-CEWG microwave source Design with PLL phase-locked technology, the frequency stability less than 50 ppm
    • long service life
      WSPS-2450-5K-CEWGmicrowave generatorcan stably operation for long time (long service life of semiconductor devices)
    • low microwave radiation
      WSPS-2450-5K-CEWG microwave generator Microwave radiation meets the industrial radiation safety code and is far below the code requirements
    • Multiple control interfaces
      Multiple control interfaces available: analogue, serial, network communication, etc.
    • Customizable
      The frequency, phase, pulse and other adjustable functions can be customized according to different requirements

Technical Specifications
ModelWSPS-2450-5K-CEWG
Frequency2450MHz
Frequency Stability50ppm
Microwave Leakage2mW/cm²@5cm
Power Stability-0.5-0.5%
Output Power range10-6000W
Working ModeCW
Efficiency53%
Cooling Methodwater cooling
Output InterfaceWR 340 Waveguide, with FDP26 Flange
Dimension
602*400*343mm





Application Scope
MPCVD
Plasma material growth and cleaning
Industrial material treatment, heating
High-power microwave light source
Particle Accelerator
