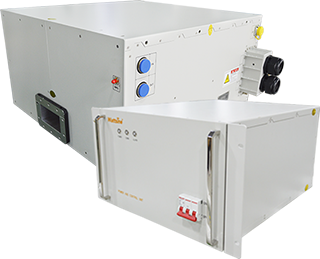

Solid-State Medium-Power Generator

WSPS-2450-8K-CEWD
2450MHz | 8kW
WSPS-2450-8K-CEWD solid state medium-power generator is a solid-state microwave energy device specifically used for application in the ISM field. combined with the latest generation of GaN/LDMOS devices, offers a fully solid-state solution with excellent performance and reliability. Provide up to 8000W of continuous wave or pulsed power. Compared to modular and solid state low-power generator, it has a more reliable internal thermal design, more internal information and status reading functions due to the greater microwave power output, and can be applied to industrial power supply with matching water cooling (silent and efficient).
    • 8000W power
      10-8000W continuously adjustable, output power stability less than 1%
    • All-solid state
      All solid-state programme design
    • Real time display
      WSPS-2450-8000 microwave generator designed with real-time display of external reflected power status
    • Complete protection
      Complete protection functions for amplifier module current, internal voltage, internal amplifier temperature and excessive standing waves with fast response
    • Frequency stability
      WSPS-2450-8K-CEWD microwave source Design with PLL phase-locked technology, the frequency stability less than 50 ppm
    • long service life
      WSPS-2450-8K-CEWD microwave generatorcan stably operation for long time (long service life of semiconductor devices)
    • low microwave radiation
      Microwave radiation meets the industrial radiation safety code and is far below the code requirements
    • Multiple control interfaces
      Multiple control interfaces available: analogue, serial, network communication, etc.
    • Customizable
      The frequency, phase, pulse and other adjustable functions can be customized according to different requirements


Technical Specifications
ModelWSPS-2450-8K-CEWD
Frequency2450MHz
Frequency Stability50ppm
Microwave Leakage2mW/cm²@5cm
Power Stability-0.5-0.5%
Output Power range10-8000W
Working ModeCW
Efficiency54%
Cooling Methodwater cooling
Output InterfaceWR 340 Waveguide, with FDP26 Flange
Dimension
613*612*343mm





Application Scope
MPCVD
Plasma material growth and cleaning
Industrial material treatment, heating
High-power microwave light source
Particle Accelerator
